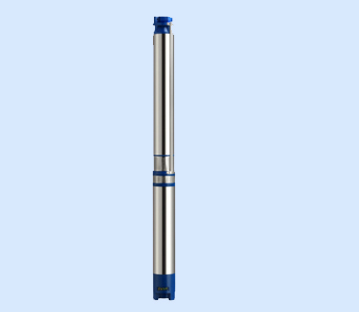

100mm Borewell Submersible - Three Phase


Applications

  • Agriculture
  • Apartments
  • Industries

Technical Specification

  • Pump contracted by Stainless steel pipe, Noryl Glass Filled casings, impellers and SS410 shaft. Stator body contracted Stainless steel pipe.
  • Stator made by laminated stamping winding with electric grad copper wire and high quality insulated materials.
  • Dynamically balanced Rotor made by laminated stamping, copper/aluminum and SS410 shaft.
  • Bush made by LTB4. Trust pad set made by C.I. Casting, carbon and Stainless steel.

100 mm Bore well Submersible Pump set Data view


S.no Brand Type KW/HP Model Head In Meters Discharge LPS No of Stages Head Range In Meters

415 Volt, 50 Hz, Three Phase AC Power Supply

1 CEC Wet-Type 1.1/1.5 COK1508T 36 1.4 8 27-40
2 CEC Wet-Type 1.1/1.5 COK1512T 48 1 12 36-53
3 CEC Wet-Type 1.1/1.5 COK1512TA 54 1.2 12 40-60
4 CEC Wet-Type 1.1/1.5 COK1515T 60 1 15 45-66
5 CEC Wet-Type 1.1/1.5 COK1518T 72 0.55 18 54-80
6 CEC Wet-Type 1.1/1.5 COK1520T 80 0.55 20 60-88
7 CEC Wet-Type 1.1/1.5 COK1525T 100 0.33 25 90-132
8 CEC Wet-Type 1.5/2 COK2005T 15 2.8 5 11-18
9 CEC Wet-Type 1.5/2 COK2010T 45 1.4 10 33-50
10 CEC Wet-Type 1.5/2 COK2016T 72 1.2 16 54-80
11 CEC Wet-Type 1.5/2 COK2020T 80 1 20 60-88
12 CEC Wet-Type 1.5/2 COK2025T 100 0.55 25 75-110
13 CEC Wet-Type 1.5/2 COK2030T 120 0.55 30 90-132
14 CEC Wet-Type 1.5/2 COK2035T 140 0.33 35 105-154
15 CEC Wet-Type 2.2/3 COK3008 24 2.88 8 18-27
16 CEC Wet-Type 2.2/3 COK3012 54 1.4 12 40-60
17 CEC Wet-Type 2.2/3 COK3015 67.5 1.4 15 50-75
18 CEC Wet-Type 2.2/3 COK3025A 112.5 1.2 25 84-124
19 CEC Wet-Type 2.2/3 COK3025 100 1 25 75-100
20 CEC Wet-Type 2.2/3 COK3030 120 1 30 90-132
21 CEC Wet-Type 2.2/3 COK3040 160 0.55 40 120-176
22 CEC Wet-Type 3/4 COK4010 30 2.8 10 22-30
23 CEC Wet-Type 3/4 COK4018 81 1.4 18 60-90
24 CEC Wet-Type 3/4 COK4020 90 1.4 20 67-99
25 CEC Wet-Type 3/4 COK4032 144 1.2 32 108-159
26 CEC Wet-Type 3/4 COK4035 140 1 35 105-154
27 CEC Wet-Type 3.7/5 COK5012 36 2.8 12 27.40
28 CEC Wet-Type 3.7/5 COK5014 42 2.8 14 31-47
29 CEC Wet-Type 3.7/5 COK5022 99 1.4 22 74-109
30 CEC Wet-Type 3.7/5 COK5025 112.5 1.4 25 84-124
31 CEC Wet-Type 3.7/5 COK5045 180 1 45 120-176
